Sraith MKP-X2 Scannán Polapróipiléine Miotalaithe EMI Toilleoir

Gnéithe:

Struchtúr polapróipiléine mhiotalaithe

In ainneoin strus overvoltage

Cumais den scoth gníomhach agus éighníomhach lasair-resistant

Úsáidtear é i gciorcad faoi chois trasnaíochta trasna na líne

Sonraíochtaí

Catagóir Aeráide Éighníomhach Inadhainteacht chatagóir	40/110/56/B
Raon Teocht Oibriúcháin	-40 ℃ ~ 110 ℃
Voltas Rátáilte	250Vac~310Vac,50/60Hz
Raon Toilleas	0.0010μF~25.0μF
Caoinfhulaingt toilleas	±10%(K), ±20%(M)
Cruthúnas Voltas	Idir Teirminéil:		4.3U _R (Vdc), 2s
	Idir cluichí ceannais Téarma Go Cás:		2120Vac, 1 nóiméad
Friotaíocht Inslithe	R≥15000MΩ,C _N ≤0.33μF (20 ℃, 100V, 1 nóiméad) RC _N ≥5000s, C _N >0.33μF
Fachtóir Diomailt	0.0010μF≤C _N <0.010μF	≤20×10 ^-4 (1kHz, 20 ℃)		≤20×10-⁴ (10kHz, 20 ℃)
	0.010μF≤C _N <0.47μF	≤10×10 ^-4 (1kHz, 20 ℃)		≤20×10 ^-4 (10kHz,20℃)
	0.47μF≤C _N <1.0μF	≤20×10 ^-4 (1kHz, 20 ℃)		≤40×10-⁴ (10kHz,20℃)
	1.0μF≤C _N <10.0μF	≤30×10 ^-4 (1kHz, 20 ℃)
	10.0μF≤C _N <50.0μF	≤40×10 ^-4 (1kHz, 20 ℃)
R com deireadh foirm tuagh rátáil príomhlíonra voltas feidhmchlár 250Vac Má úsáidtear é i bhfeidhmchlár a bhfuil sruth nipple curtha i bhfeidhm air, mol úsáid scagairí AC: C 6Aetc; Má tá aon cheist agat déan teagmháil lenár n-innealtóir teicniúil le haghaidh tuilleadh sonraí; Le haghaidh cur i bhfeidhm riocht taise lasmuigh nó trom, mol deireadh le húsáid TH B senes.

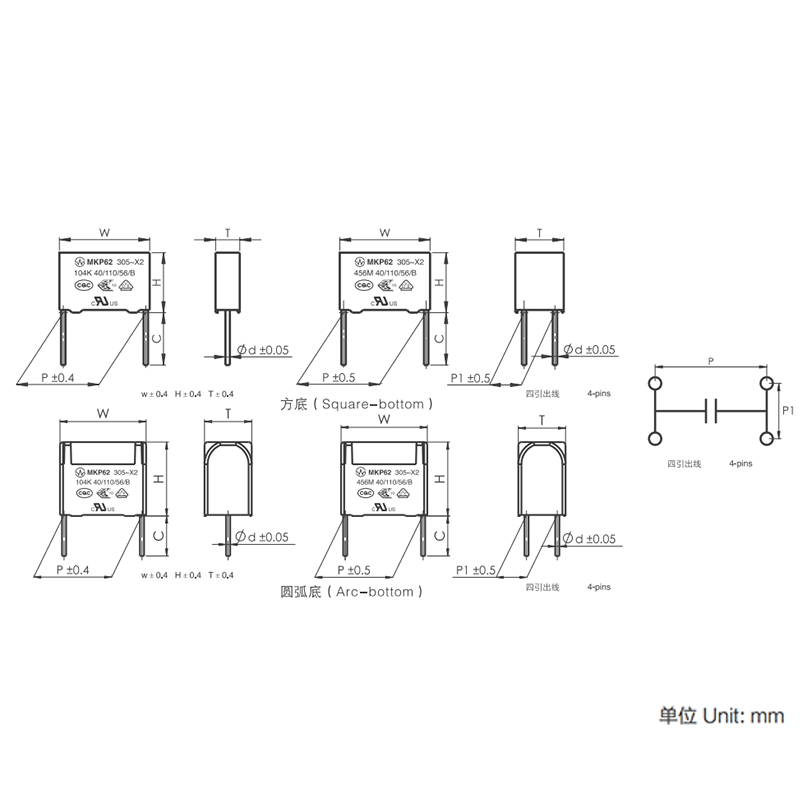

Toisí(mm)

	C (μF)))	Thiar	H	T	P	D
	C (μF)))	Thiar	H	T	P	D
250/275/80/300/310VAC	0.001	10.5	9	4	7.5	0.6
	0.0012	10.5	9	4	7.5	0.6
	0.0015	10.5	9	4	7.5	0.6
	0.0018	10.5	9	4	7.5	0.6
	0.0022	10.5	9	40	7.5	0.6
	0.0027	10.5	9	4	7.5	0.6
	0.0033	10.5	9	4.)	7.5	0.6
	0.0039	10.5	90	40	7.5	0.6
	0.0047	10.5	9	4	7.5	0.6
	0.0056	10.5	9	4	7.5	0.6
	0.0068	0.5	9	4	7.5	0.6
	0.0082	10.5	9	4	7.5	0.6
	0.01	0.5	9	4	7.5	0.6
	0.012	10.5	9	4	7.5	0.6
	0.015	10.5	9	4	7.5	0.6
	0.018	0.5	9	4	7.5	0.6
	0.022	10.5	9	4	7.5	0.6
	0.027	10.5	9	4	7.5	0.6
	0.033	10.5	11	5	7.5	0.6
	0.039	10.5	44	5	7.5	0.6
	0.047	10.5	11	5	7.5	0.6
	0.056	10.5	13	6	7.5	0.6
	0.068	10.5	13	6	7.5	0.6
	0.0047	13	9	4	10	0.6
	0.0056	13	9	4	10	0.6
	0.0068	13	9	4	10	0.6
	0.0082	13	9	4	10	0.6
	0.01	13	9	0	10	0.6
	0.0015	13	9	4	10	0.6
	0.018	13	9	4	10	0.6
	0.022	13	9	4	10	0.6
	0.027	13	)	4.)	10	0.6
	0.033	13	9	40	10	0.6
	0.039	13	9	40	10	0.6
	0.047	13	9	4	10	0.6
	0.056	13	11	5	10	0.6
	0.068	13	11	5	10	0.6
	0.082	13	11	5	10	0.6
	0.10m	13	44	50	10	0.6
	0.10K	13	12	6	10	0.6
	0.12	13	13	7	10	0.6
	0.15	13	13	7	10	0.6
	0.18	13	14	8	10	0.6
	0.22m	13	14	8	10	0.6
250/275/80/300/310VAC	0.01	17.5	9.5	5	15	0.6
	0.015	17.5	9.5	5	15	0.6
	0.015	17.5	9.5	5	15	0.6
	0.018	17.5	9.5	5	15	0.6
	0.022	17.5	9.5	5	15	0.6
	0.027	17.5	9.5	5	15	0.6
	0.033	17.5	0b	5	15	0.6
	0.039	17.5	9.5	5	15	0.6
	0.047	17.5	9.5	5	15	0.6
	0.056	17.5	9.5	5	15	0.6
	0.068	17.5	9.5	5	15	0.6
	0.082	17.5	9.5	5	15	0.6
	0.10m	17.5	9.5	5	15	0.6
	0.1	17.5	11	5	15	0.6
	0.12	17.5	11	5	15	0.6
	0.15m	17.5	11	5	15	0.6
	0.15K	17.5	2	6	15	0.6
	0.18	17.5	12	6	15	0.6
	0.22m	17.5	12	6	15	0.6
	0.22K	17.5	13.5	6	15	0.6
	0.22K	17.5	12	7	15	0.6
	0.22K	17.5	13.5	7.5	15	0.6
	0.27	17.5	13.5	7.5	15	0.6
	0.33m	17.5	13.5	7.5	15	0.6
	0.33K	17.5	14	8	15	0.6
	0.33m	17.5	12.5	9	15	0.6
	0.33m	17.5	17.5	6	15	0.6
	0.33K	17.5	18.5	7.5	15	0.8
	0.33	17.5	12	13	15	0.8
	0.39	17.5	14.5	8.5	15	0.6
	0,47m	17.5	14.5	8.5	15	0.6
	0.47m	17.5	18.5	7.5	15	0.8
	0.47K	17.5	16	10	15	0.8
	0.56	17.5	16	10	15	0.8
	0.6	17.5	19	11	15	0.8
	0.68	17.5	9	11	15	0.8
	0.82m	17.5	19	11	15	0.8
	0.15	26.5	15	6	22.5	0.8
	0.18	26.5	15	6	22.5	0.8
	0.22	26.5	15	6	22.5	0.8
	0.27	26.5	15	6	22.5	0.8
	0.33	26.5	5	6	22.5	0.8
	0.39	26.5	5	6	22.5	0.8
	0.47m	26.5	5	6	22.5	0.8
	0.47K	26.5	16	7	22.5	0.8
	0.56	26.5	16	7	22.5	0.8
	0.6	26.5	17	8.5	22.5	0.8
	0.68	26.5	17	8.5	22.5	0.8
	0.82	26.5	18.5	10	22.5	0.8
	1	26.5	18.5	10	22.5	0.8
	1.2	26.5	20	11	22.5	0.8
	1.5m	26.5	20	11	22.5	0.8
	1.5K	26.5	22	12	22.5	0.8
250/275/80/300/310VAC	1.8	26.5	24.5	15.5	22.5	0.8
	2.2	26.5	24.5	15.5	22.5	0.8
	2.2	26.5	29.5	14.5	22.5	0.8
	0.39	32	18	9	27.5	0.8
	0.47	32	18	9	27.5	0.8
	0.56	32	18	9	27.5	0.8
	0.68	32	18	9	27.5	0.8
	0.82	32	18	9	27.5	0.8
	1	32	18	9	27.5	0.8
	1	32	12	18	27.5	0.8
	1.2	32	20	11	27.5	0.8
	1.5	32	20	11	27.5	0.8
	1.8	32	22	13	27.5	0.8
	2.2m	32	22	13	27.5	0.8
	2.2k	32	25	13	27.5	0.8
	★ 2.2	32	16	22	27.5	0.8
	2.7	32	28	14	27.5	0.8
	3.3	32	30	6	27.5	0.8
	3.3m	32	24.5	15	27.5	0.8
	3.3K	32	28	17	27.5	0.8
	★ 3.3m	32	16	27.5	27.5	0.8
	★ 3.3K	32	18.5	31	27.5	0.8
	3.9	32	29	19	27.5	0.8
	3.9	32	33	18	27.5	0.8
	4.7m	32	33	18	27.5	0.8
	★ 4.7m	32	18.5	31	27.5	0.8
	4.7k	32	33	18	27.5	0.8
	★ 4.7	32	30	21	27.5	0.8
	5.6	32	37	22	27.5	0.8
	6.8m	32	37	22	27.5	0.8
	1.5	41	22	11	37.5	1
	1.8	41	22	11	37.5	1
	2.2	41	24	13	37.5	1
	2.2	42	15	24	37.5	1
	2.7	41	24	13	37.5	1
	3.3	41	26	15	37.5	1
	3.3	42	28	14	37.5	1
	3.3	42	15	24	37.5	1
	3.9	41	30	16	37.5	1
	4.7m	42	19	24	37.5	1
	4.7k	41	20	26	37.5	1
	4.7	41	30	16	37.5	1
	5.6	41	33.5	18.5	37.5	1
	6.8	41	33.5	18.5	37.5	1
	6.8	42	24	32	37.5	1
	8.2	41	37	22	37.5	1
	10.0m	41	37	22	37.5	1
	10.0K	41	41	26	37.5	1
	10.0K	41.5	37.5	27.5	37.5	1
	12	41	43	28	37.5	1
	15	42	45	30	37.5	1
	20	42	57.5	30	37.5	1
	20	57	45	30	52.5	1.2
	20	57	30	44	52.5	1.2
	25	57	50	35	52.5	1.2
250/275/80/300/310VAC	0.022	10.5	9	4	7.5	0.6
	0.027	10.5	11	5	7.5	0.6
	0.033	10.5	11	5	7.5	0.6
	0.039	10.5	12	6	7.5	0.6
	0.047	10.5	12	6	7.5	0.6
	0.033	13	11	5	10	0.6
	0.039	13	11	5	10	0.6
	0.047	13	11	5	10	0.6
	0.056	13	11	5	10	0.6
	0.068	13	12	6	10	0.6
	0.082	13	12	6	10	0.6
	0.1	13	12	6	10	0.6
	0.12	13	14	8	10	0.6
	0.15	13	14	8	10	0.6
	0.01	17.5	11	5	15	0.8
	0.012	17.5	11	5	15	0.8
	0.015	17.5	11	5	15	0.8
	0.018	17.5	11	5	15	0.8
	0.022	17.5	11	5	15	0.8
	0.027	17.5	11	5	15	0.8
	0.033	17.5	11	5	15	0.8
	0.039	17.5	11	5	15	0.8
	0.047	17.5	11	5	15	0.8
	0.056	17.5	11	5	15	0.8
	0.068	17.5	11	5	15	0.8
	0.082	17.5	11	5	15	0.8
	0.1	17.5	11	5	15	0.8
	0.12	17.5	12	6	15	0.8
	0.15	17.5	12	6	15	0.8
	0.18	17.5	13.5	7.5	15	0.8
	0.22	17.5	13.5	7.5	15	0.8
	0.27	17.5	14.5	8.5	15	0.8
	0.33	17.5	16	10	15	0.8
	0.39	17.5	19	11	15	0.8
	0.47	17.5	19	11	15	0.8
250/275/80/300/310VAC	0.22	26.5	15	6	22.5	0.8
	0.27	26.5	16	7	22.5	0.8
	0.33	26.5	16	7	22.5	0.8
	0.39	26.5	17	8.5	22.5	0.8
	0.47	26.5	17	8.5	22.5	0.8
	0.56	26.5	18.5	10	22.5	0.8
	0.68	26.5	18.5	10	22.5	0.8
	0.82	26.5	22	12	22.5	0.8
	1	26.5	22	12	22.5	0.8
	1.2	26.5	24.5	15.5	22.5	0.8
	1.5	26.5	24.5	15.5	22.5	0.8
	0.82	32	20	11	27.5	0.8
	1	32	20	11	27.5	0.8
	1.2	32	22	13	27.5	0.8
	1.5	32	22	13	27.5	0.8
	1.8	32	24.5	15	27.5	0.8
	2.2	32	28	14	27.5	0.8
	2.7	32	33	18	27.5	0.8
	3.3	32	33	22	27.5	0.8
	3.9	32	37	22	27.5	0.8
	4.7	32	37	11	27.5	0.8
	1.5	41	22	11	37.5	1
	1.8	41	26	12	37.5	1
	2.2m	41	26	12	37.5	1
	2.2K33	42	28	14	37.5	1
	2.7	42	28	14	37.5	1
	3.3	41	30	16	37.5	1
	3.9	41	32	17	37.5	1
	4.7	41	33.5	18.5	37.5	1
	5.6	41	37	22	37.5	1
	6.8	41	37	22	37.5	1
	8.2	41	41	26	37.5	1
	10	41	43	28	37.5	1
